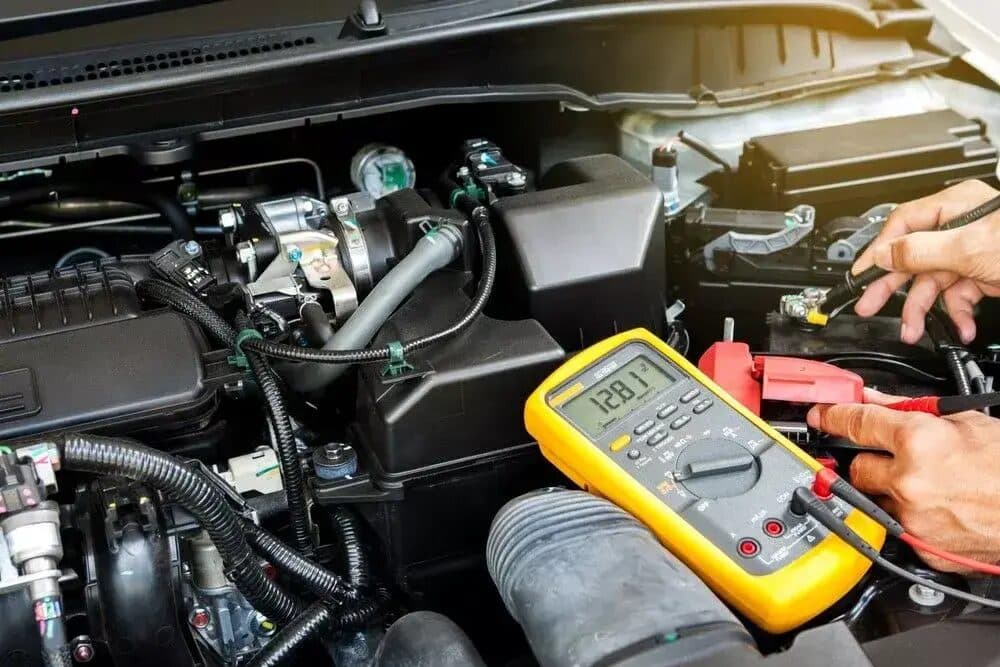

How to Test a Battery with a Multimeter: Step-by-Step Guide

Carbatterytest

If your vehicle won’t start or your gadgets are running on low or dead battery either, a battery check is in order. In this guide, we’ll walk you through how to test a battery with a multimeter, providing you with a clear, step-by-step approach to accurately gauge battery health. This is the information you need to determine whether a charge or a new battery is necessary, without any fluff or technical overload.

https://wsa-website-assets.s3.amazonaws.com/assets/images/Types_of_Car_Batteries.jpg

Understanding the Importance of Car Batteries

A car battery is an essential element for providing power to the vehicle’s engine and its accessories when not in use. For that reason, knowing how to use a battery with a multimeter can be extremely beneficial should one ever find themselves stranded on a freezing winter morning due to the failure of their car’s starter motor. Making sure all terminals are clean will help prevent voltage drops which may lead to start-up issues, so regular checkups and maintenance procedures are highly recommended by experienced mechanics as well as everyday drivers alike. To understand what it takes precisely examine batteries using this device, let us take an even closer look at different types of auto cells.

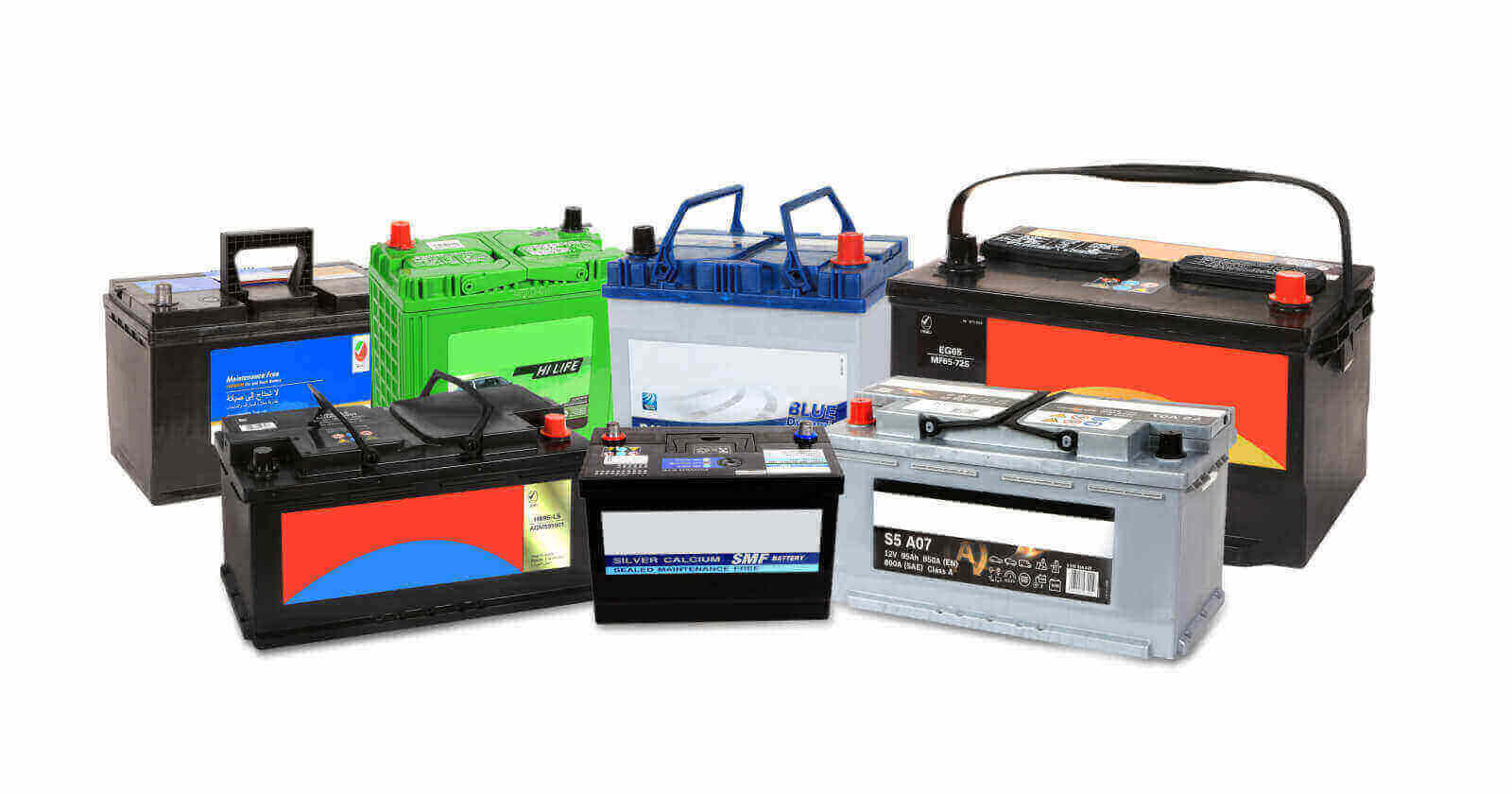

Types of Batteries: A Brief Overview

Car batteries come in many different varieties, and each has its own unique properties for specific applications. Silver Calcium cells are typically used on vehicles such as cars, while AGM (Absorbent Glass Mat) or Enhanced Flooded Battery (EFB) cells can be found in everyday items like remote controls and flashlights. On the other hand, lithium-ion car batteries possess high energy density which is often utilized when powering electric automobiles. Before we learn how to test these power sources though, one must first understand a tool vital to this task, multimeters.

Testing of automobile accumulators involves various processes depending on their type. Lead acid ones require battery acid whereas alkaline types don’t need any due to no hazardous liquids present inside them similarily toys get powered by dry cell brands of standard alclaline form factor offered widely over commercial channels even worldwide resellers offer optionable shipping too simplify access choice available not just locally but internationally also since tests help know longetivity optimizaton factors etcetera understanding process behind with use od tools effectively provide real world advantage quality life prolongment

Essential Multimeter Basics

Using a multimeter as your car’s stethoscope, you can measure voltage, amperage and resistance levels in its electrical components or circuits. It is available with either an analog or digital display. The red wire is for positive while black stands for negative terminals. As it is essential to connect the red end onto the positive or negative terminal, when testing battery life-span using this tool, here follows a step by step guide on how to do so successfully.

Firstly, identify if you’re dealing with an analog device which uses a moving needle along calibrations against values shown – otherwise opt into interpreting numerical readout from modern varieties of multi meters’ LCD displays instead. Secondly, take note that it is important to only ever use black and then allocate each connection type per their respective post (positive/negative). Lastly, adjust reading gauge meter depending on what kind of activity are scanning plus purpose thereof, ie whether simply checking level charge left within out full deep discharge test being conducted.

https://wsa-website-assets.s3.amazonaws.com/assets/images/howtotestbattery.jpg

How to Test a Car Battery with a Multimeter

Testing your car battery with a multimeter is similar to bringing it in for routine check-up. Even without technical knowledge, anyone can do the following easy steps – preparing your vehicle and its battery beforehand, measuring voltage between the positive and negative terminals of this battery using the meter device itself, and lastly examining Cold Cranking Amps (CCA).

Preparing Your Car for Testing

Before beginning, make sure you prioritize safety for both your vehicle and yourself - do not let metal objects come in contact with the battery terminals to avert a short circuit that could be hazardous to either the car’s electrical system or even just its battery. It is best if you take some time beforehand to browse through your owner’s manual and ensure the engine bay is clean-cut as well as illuminated properly. These two aspects will allow an obvious overview of all sides of positive battery terminal ends while also preventing debris from disrupting testing operations.

Now that everything has been taken care of, we can move onto measuring rest voltage, which proves crucial too!

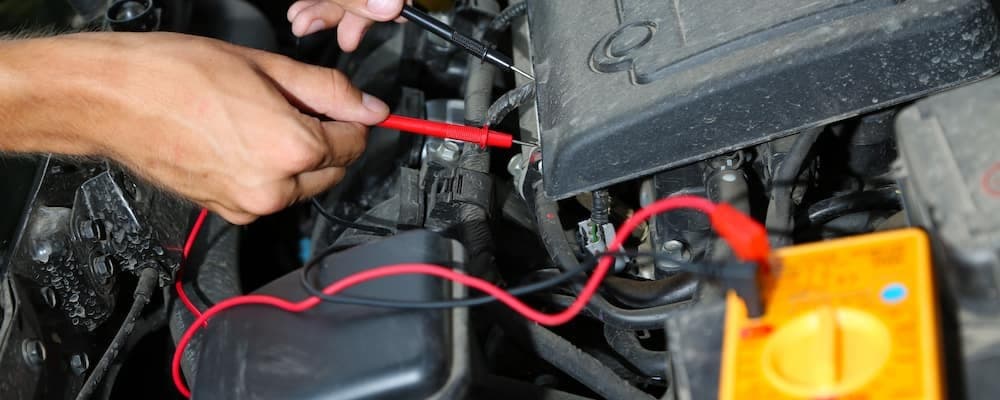

Measuring Voltage Across Car Battery Terminals

When you are measuring the voltage of a car battery with your multimeter, make sure that all lights and the car ignition have been turned off. Connecting the red probe to its battery's positive terminal, is firstly required. Then connect black probe into negative end. Set it to DC Voltage mode so as to get an accurate reading on what’s displayed by way of volts, this showing up how much charge remains in your battery.

An average voltage reading for fully charged vehicle’s battery should read 12.6V, while readings under 11.9 signal out discharge status or need for replacement/charging urgently needs attention here! If voltages drop below 12-2 it shows 50% charge capacity remaining at least until CCA (Cold Cranking Amps) can be assessed too when checking condition levels overall pertaining to life expectancy lifespan etc.

Assessing Cold Cranking Amps (CCA)

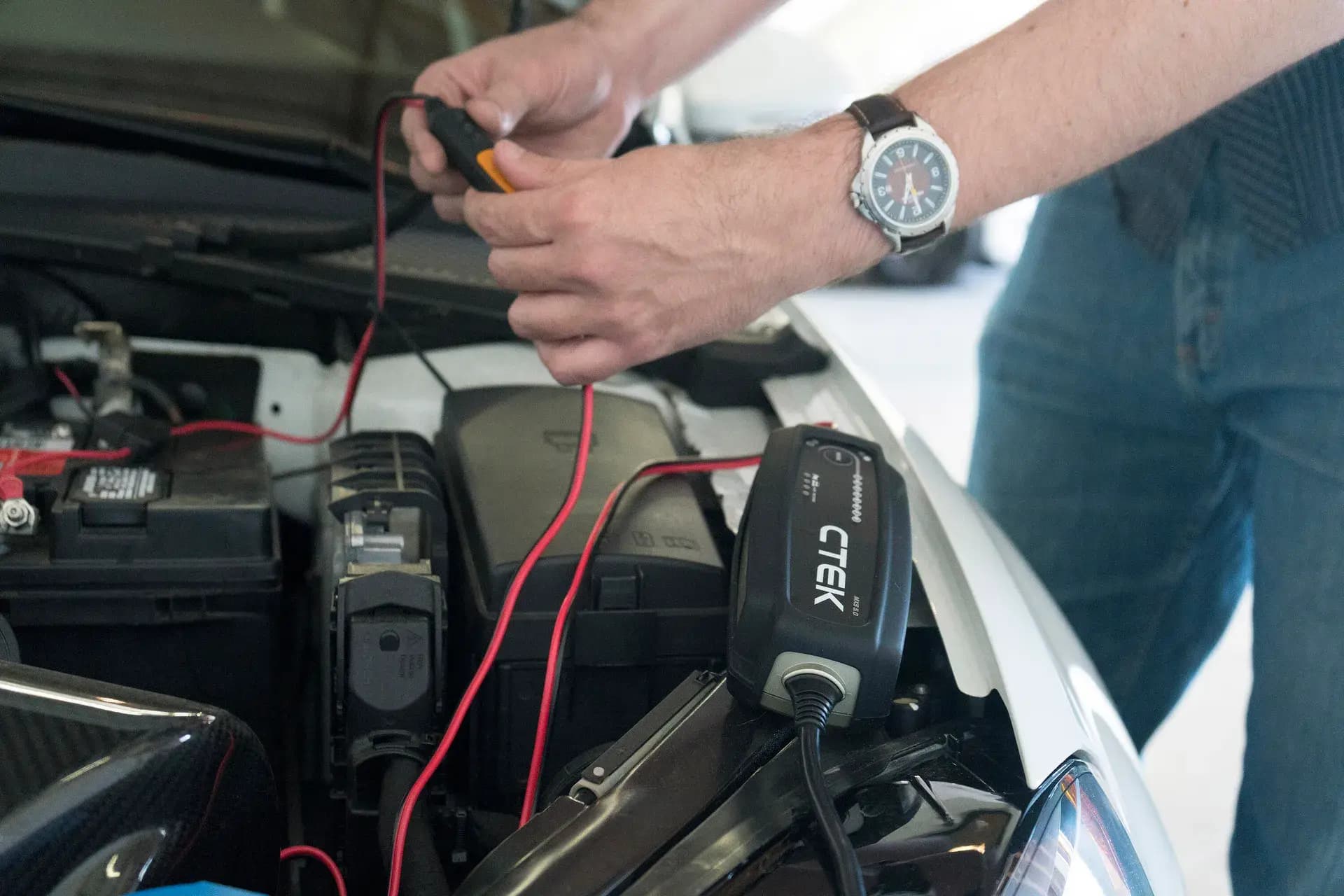

Testing the CCA of car batteries requires connecting a battery charger and then measuring voltage if it drops below 9.6 volts after an assistant has loaded them to half their rating for 15 seconds. This gives an assessment of how much power they can deliver in cold weather conditions - that is, when starting up your engine on a chilly morning. Low results from load test may signify there’s something wrong with the battery itself or its charge capacity isn’t sufficient enough to generate current for powering up engines under such temperatures.

https://wsa-website-assets.s3.amazonaws.com/assets/images/batterycharger.webp

Identifying Signs of a Failing Battery

Maintaining a healthy car battery is essential, and recognizing its warning signs is key. Examples of deteriorating batteries include slow cranking or not cranking at all, malfunctioning accessories such as doors and trunk failing to open easily - these being indicators that the vehicle’s power supply or charging system isn’t strong enough anymore. When this happens, it can lead eventually to an even more fatal end: a dead battery!

Now we understand how one might identify when their auto-power source needs looking into. Let us move on then towards discussing methods for prolonging your car’s life through proper maintenance of said automotive arsenal.

Maintaining Battery Health: Tips and Tricks

Keeping your car battery in good condition is an important part of ownership. Regular use helps to maintain its health by preventing sulfation, a process which can reduce its lifespan if left idle for too long.

To ensure optimal performance and avoid starting problems or electrical issues, you should also clean the terminals regularly, removing any corrosion buildup that may affect the conduction of electricity through them. In conclusion, cars need regular care when it comes to their batteries. Remembering best practices such as driving regularly and cleaning terminals will help prolong the life of this key component within your vehicle.

https://wsa-website-assets.s3.amazonaws.com/assets/images/battery-test.jpg

Summary

Being able to test a battery with a multimeter is a skill that can save you from unexpected battery failures. From understanding the importance of a car battery voltage, batteries, types of batteries, and multimeter basics to a step-by-step guide to testing a car battery. Remember, regular testing and maintenance are key to prolonging your battery’s lifespan and ensuring optimal performance.
